e3 Diagnostics

e3 Diagnostics offers the most advanced, state-of-the-art tympanometers on the market. Whatever your middle-ear testing needs are, rest assured that you will be able to effectively execute them with one of these stellar audiological instruments.

imagesspot-mi26racecar-500x500

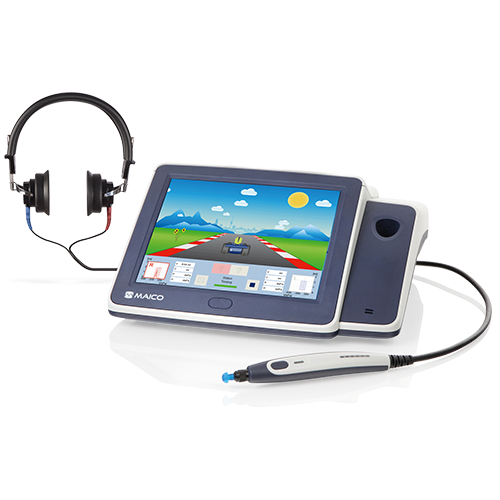

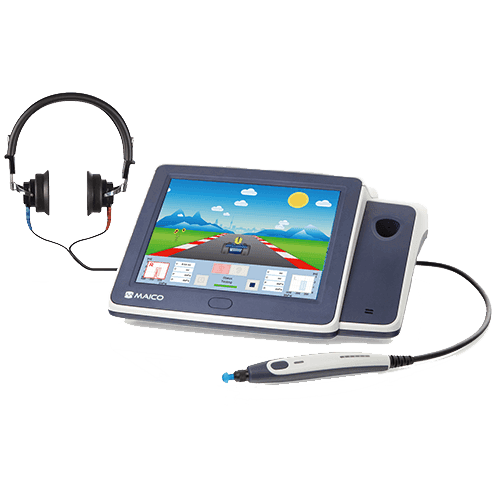

MAICO MI 26 touchTymp RaceCar

Features at a Glance

• Combo device with small footprint
• Easy, fun middle ear testing for children
• Customizable to suit individual needs
• High resolution and quick screen transitions
• Full touch-based interface for intuitive handling
• Probe tone 226 Hz (optional 1000 Hz)
• Ipsi acoustic reflex 500 Hz, 1 kHz, 2 kHz, 4 kHz (optional contralateral)
• Air conduction audiometry (optional bone conduction)
• Built-in printer or data transfer to PC

Colorful animation keeps children focused

We make immittance testing easy and fast by focusing the child’s attention on an exciting race car animation. The animation distracts the child and turns the test procedure into an engaging and fun experience: the start of a tympanometry or reflex screening becomes the start of a high-speed car race. This makes the screening procedure easier for you and more enjoyable for your little patients!

Brochure

Request a Quote

We understand that you have a choice when it comes to choosing your equipment and are dedicated to providing you with the highest quality instrumentation available.Contact us now for your free, no obligation quote and discover why we are the preferred Authorized Distributor and Service Provider to the world’s leading manufacturers.  (Completing our online form does not sign you up for electronic advertising.)

Request Quote

Specifications

TYMPANOMETRY

Probe Frequency: 226 Hz ± 1 %, 85 dBSPL ± 1.5 dB

Optional High Frequency: 1 kHz ± 1%, 69 dBSPL ± 1.5 dB

Pressure Range: -600 to + 400 daPa

Accuracy of Pressure: ± 5 % or ± 10 daPa

Volume range: 0.0 to 6.0 ml (compensated)

Compliance range: 0.1 to 8.0 ml at 226 Hz; 0.1 to 15.0 mmho at 1 kHz (option)

Accuracy of Volume: ± 5 % or 0.1 ml

Test Time: 3 - 5 seconds



AUDIOMETRY

Test Signals: Pure tone and warble tone (pulsed and continuous)

Test Frequencies: 125, 250, 500, 750, 1000, 1500, 2000, 3000, 4000, 6000, 8000 Hz (125 Hz excluded from bone conduction test frequencies)

Level Steps: 5 or 1 dB

Hearing Level Range AC: -10 to 120 dBHL

Hearing Level Range BC-10 to 80 dBHL

Masking Noise (included with BC option only): Narrow band and white noise
