When background noise needs to be eliminated to get accurate results, audiometric testing booths are your best option. e3 Diagnostics offers audiometric sound booths built with unrivaled quality from the world’s leading manufacturers. Browse our selection and discover soundproof room audiometry for your clinic or practice. Our audiometric booths offer a quiet space to administer hearing tests with ease.

We provide static audiometric test rooms as well as mobile audiometric booths to meet patient needs. Require multi-station booths? Want the flexibility to change between right-hand and left-hand arrangements? Desire a custom color? We can help with those requests, too. We work with only the best manufacturers to provide audiometric testing booths to meet your specifications. Simply request a quote, and we'll be happy to help.

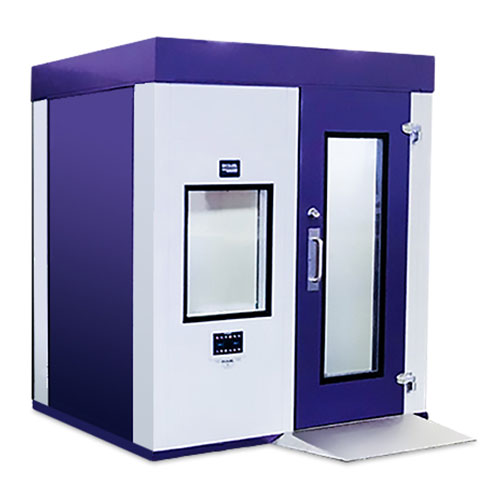

Eckel Audiology Rooms

Eckel Audiology Rooms

Eckel’s Audiology Rooms are the gold standard of the audiology industry. Available with either Single Wall or Double Wall construction, these premium quality rooms offer a wide range of options designed for precise audiometric measurement applications, including audiology, medical offices, research institutes and more. The series is ideal for industry and private clinics.

Engineered with 4" thick wall panels, models include easy-to-move Cam-Lock rooms (C & CL Series), plus H Batten versions with optional RF Shielding (H & HL Series). Custom sizes are also available, as well as 6" thick wall panels.

All rooms have a clinical jack panel for greater versatility, plus non-visible electrical wiring, an efficient and silent ventilation system, double-glazed safety glass windows, a flush sill door with a magnetic gasket seal, lighting, and carpeting. They’re great for sound field measurements, brain stem audiometry, and hearing aid evaluation.

Brochure

Request a Quote

We understand that you have a choice when it comes to choosing your equipment and are dedicated to providing you with the highest quality instrumentation available.Contact us now for your free, no obligation quote and discover why we are the preferred Authorized Distributor and Service Provider to the world’s leading manufacturers.  (Completing our online form does not sign you up for electronic advertising.)

Request Quote



Standard Features

  • 4” (100mm) Cam-Lock Panel System
  • 4” (100mm) Flush Mount H-Batten System
  • 32” W x 73 3/4” H (813mm x 1873mm) Clear Opening Door
  • 24” (610mm) W x 762mm (30”)H Double Glazed Window
  • Built in Attenuated Ventilation System
  • Separate Switches for Internal Light and Fan with Speed Controllers
  • Vibration Isolators

Standard Features (Continued)

  • Color : Standard Eckel White, Beige, Warm Grey (additional colors available on request)
  • Fully Demountable
  • Supplied Flat Pack (easily installed onsite)
  • Wide Range of Models
  • Low profile options are available for all models
  • Jack Panel is complete with 12 x 1/4” Phone Jacks, 2 USB, and a 1” (25mm) pass-through
  • Pre-wired Plug and Play Electrics
