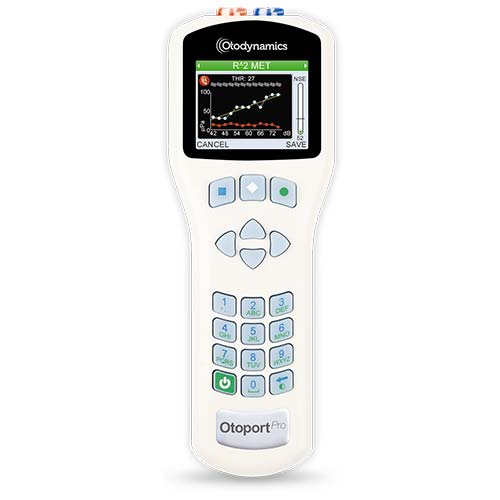

Otodynamics Otoport Pro Advanced Clinical

Benefit from the full OAE range and power of the Otoport Pro Advanced Clinical. Boasting 16 fully customizable protocols, the Otoport Advanced Clinical model will perform in the most demanding of clinics. Incorporating all the functions of the Otoport Pro Screener and Clinical models, the Advanced clinical has three additional investigational OAE functions. DP ZOOM explores DP-gram features at up to 100 points per octave resolution. Stimulus levels are configurable in 1dB steps. DP GROWTH provides multi stimulus level DPOAE measurements at any frequency 1-8kHz. MULTI TEST function linking up to 4 loop-able test protocols allowing you to build a sequence of different DP and/or TE tests. TEOAE is also included as standard with additional high-resolution spectral analysis from 0.5 to 6kHz.

Get a quote  Brochure

Take advantage of all Advanced Clinical’s sophisticated tools to go beyond routine clinical DPOAE recordings towards clinical research investigations. Capture detailed test information including physiological responses for in-depth analysis in our Otolink PC software, which can also export data for research.

Otoport Pro records high resolution DPOAEs from 0.5kHz to 8kHz. Sweep frequency automatically or under manual control to focus on difficult frequencies. Achieve unrivalled frequency resolution with DP Zoom. Explore cochlear function with input-output measurements using the Advanced DP Growth test. Link up to 4 tests together in a repeatable test sequency using the MULTI-TEST macro programmer.

You can add AABR infant screening, offering two AABR protocols customizable between 35 - 45dBnHL. Extend to 60dBnHL for non-screening training/research use. Display the emerging ABR waveform test in real time and detailed examination post test.

Extensive configurability including
DP Zoom to 100pts/octave
DP Growth I/O with scissor mode
12 frenquency DPOAE
Mutli test macro (4x protocols)

Configuration Norms

Rapid DPOAE screening mode
Easy-to-use pass/refer result
Automatic test progression and interpretaion Large searchable database
Access to selected research function for IRB approved projects.

Up to 6kHz with configurable norms.
Choice of response window.
Gold standard TEOAE Quickscreen
Easy-to-use pass/refer result
Automatic test progress and interpretaion Large searchable database

Superior pretest environment, with
power-line & individual impedance analysis.
Fast pass/refer result
Choice in stim delivery ear cup/insert
Automatic test progress and interpretaion
Real time ABR waveform view
** 60 dBnHL for training
Extendable FSP for AABR waveform capture.

Request a Quote

We understand that you have a choice when it comes to choosing your equipment and are dedicated to providing you with the highest quality instrumentation available.Contact us now for your free, no obligation quote and discover why we are the preferred Authorized Distributor and Service Provider to the world’s leading manufacturers.  (Completing our online form does not sign you up for electronic advertising.)

Request Quote


TEST CONFIGURATION  1 Protocol, 4 Parameters
FREQUENCY RANGE  1, 2, 3, 4, 6kH
FREQUENCY RESOLUTION  Half octave
FREQUENCY RATIO 1.22
STIM LEVEL 60/55 or 65/50 or 65/55
DISPLAY Graphic progress indicators / Numeric / Pediatric distraction / Line Graph
PASS CRITERIA 2, 3 or 4 frequencies
PASS SNR 6dB (Fixed)

TEST CONFIGURATION  1 Protocol, 4 Parameters
FREQUENCY RANGE  1, 1.5, 3, 4kHz
FREQUENCY RESOLUTION Half octave bandwidth
STIMULUS LEVELS Fixed 84 dBSPLpe
PASS CRITERIA 2, 3, or 4 half octave bands, or wide / narrow bands
PASS SNR 6dB (Fixed)

ADD

TEST CONFIGURATION 2 Protocols, 9 Parameters
STIMULUS LEVELS (dBnHL) 30 to 45 (Δ1dB)**
STIMULUS TYPE Chirp and Click
PASS CRITERIA Configurable FSP with neonatal waveform template
  • Light weight & Easy to use
  • Long battery life over 250 tests per battery charge
  • Large storage, database holds 4000 tests
  • Extensive patient data fields
  • Create multiple user profiles with Admin management and security
  • Customizable QA calibration test area & history view
  • On-screen notification of poor probe fit, high noise level and ringing stimulus
  • Clear test progression notification & probe fit and noise level indicators
  • Pause & resume testing function
  • Each test is saved with the actual physiological response
  • Probe test function and ID tracking
  • Programmable work-list
  • Transfer data wirelessly to the Otolink suite software
  • Automated self-test system when powering on Otoport
  • Print wirelessly to the Otodynamics optional mini printer
