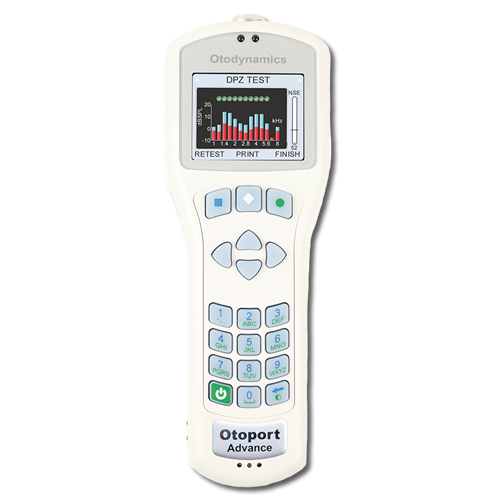

Otodynamics Otoport Advance

Delivering quality OAE measurements and analysis, the Otoport Advance from Otodynamics offers 12 frequency testing in a lightweight and portable device.

Combining an ergonomic design, intuitive menu-driven operation, and automatic or manual settings, the Otoport Advance is ideal for all clinical screening and diagnostic applications.

Get a quote  Brochure

Otoport Advance Supplies

Request a Quote

We understand that you have a choice when it comes to choosing your equipment and are dedicated to providing you with the highest quality instrumentation available.Contact us now for your free, no obligation quote and discover why we are the preferred Authorized Distributor and Service Provider to the world’s leading manufacturers.  (Completing our online form does not sign you up for electronic advertising.)

Request Quote


Specifications

  • User interface: Display: 65K color, high resolution. Input: Alphanumeric keypad with cursor control and menu softkeys.
  • Test capacity: More than 250 test cycles or one full working week (typical use).
  • Memory and storage: More than 5000 test records. 1024 patient records.
  • Hardware options: Wireless printing/internal barcode reader/RFID scanner.
  • Data acquisition: Analogue interface: 2 x 16bit (output) and 1 x 16 bit (input) channels. Frequency response - 160Hz to 12KHz (electrical).
  • Electrical interfaces: Probe connector (Otodynamics 8-pin). Data/charge connector - USB 1.1/2.0 compatible PC connection for data and charging, also accepts Otodynamics PSU. Optional wireless interface to Otodynamics printer.
  • Power: Internal rechargeable 3.7v, 1000mAh lithium-polymer battery. Charge time: 3 hrs to 90%. Approx 4 hrs to 100% capacity. Intelligent multi-level power control. Maximum power use: Testing - 1000mW. Charging - 2.5W.
  • Dimensions: 7.6” x 2.7” x 1.2” (195mm x 70mm x 30mm).
  • Weight: 7.5 oz (214 g)
  • Operating environment: For indoor use at 41 to 104°F (5-40°C). Max humidity 80% up to 88°F (31°C) decreasing linearly to 5% RH at 104°F (40°C).
  • Transport and storage environment: 32-104°F (0°C to 40°C). Pressure range: 23-101KPa. Humidity: 10% to 90% non-condensing.

Specifications general

  • Clinical quality OAE measurements with advanced data analysis and management
  • Ideal for all clinical and screening applications and advanced diagnostic testing
  • All the power of a PC OAE analyzer in a handheld
