Our portable breath alcohol testing instruments are battery operated, and easily transportable. Used in law enforcement and workplace testing environments, portable breath alcohol test systems are lightweight and ideal for evidential testing applications, printing results, and in many cases mobile data collection.

All of our portable breath alcohol testers feature integrated fuel cell technology, for accurate, repeatable results and long instrument life.

Intoximeters RBT VXL

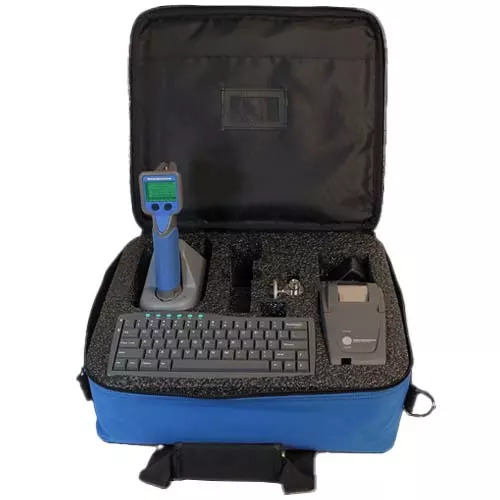

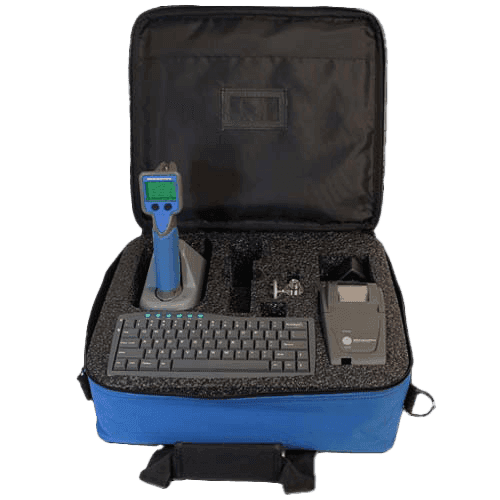

The RBT VXL features the Alco-Sensor® VXL, the latest in the trusted line of Alco-Sensor® evidential grade handheld breath testing instruments. This kit consists of an Alco-Sensor VXL instrument, a docking station, a keyboard and a printer. The Alco-Sensor VXL is programmed to prompt the operator through a simple, step-by-step test sequence that:

  • Allows for data entry of subject, operator and other test information through the keyboard
  • Automatically collects and analyzes a breath sample
  • Produces a displayed, printed and stored-to-memory test record

Request a Quote

We understand that you have a choice when it comes to choosing your equipment and are dedicated to providing you with the highest quality instrumentation available.Contact us now for your free, no obligation quote and discover why we are the preferred Authorized Distributor and Service Provider to the world’s leading manufacturers.  (Completing our online form does not sign you up for electronic advertising.)

Request Quote


Specifications

Analytical System
Utilizes an Intoximeters electrochemical fuel cell sensor which generates an electrical response that is proportional to the Breath Alcohol Concentration in the provided, fixed volume sample. The fuel sensor is highly selective for alcohol. It does not respond to acetone or other substances found in the human breath after a fifteen minute deprivation period.

Measurement Types
Manual Sample Direct Test
Automatic Sample Direct Test
Manual Sample Passive Test
Automatic Sample Headspace Test
Manual Sample

Measurement Range
.000 to .440 g/210L (custom ranges and units of measure are available)

Accuracy and Precision
Meets the NHTSA model specifications for Evidential Breath Test Devices

Environmental Limitations
Instrument is designed to be used and has a proven track record in almost any environment that an operator could expose breath alcohol testing instruments to. Instrument operates in a wide range of temperatures, ambient humidity, and ambient pressures.

Mouthpiece
Direct Sample – The Intoximeters-designed mouthpiece provides both a “lever and click” alignment for simple installation and provides a tested and proven mouthpiece that produces accurate and repeatable results.
Passive Sample – Passive cup adapter
Headspace Sample – Drink sniffer adapter

Visual Output
Backlit multi-color graphics LCD, side facing LEDs and a lighted mouthpiece guide provide easy to see visual information to help the operator complete the testing process.

Audio Output
Audible tone to support visual messaging

Data Storage
Can store up to 7,000 tests (depending upon number of data fields collected)

Print Capable
Yes. The device is offered with a battery operated portable thermal printer. Alternate printer options are available upon request.

Power Options
Disposable Batteries – 4 x 1.5V AA alkaline batteries
Optional Rechargeable Batteries – 4 x 1.5V NiMH rechargeable cells
Power for Printer – Rechargeable battery (charger included)

Case Construction
Instrument – Rugged ABS casing with rubber overmolding grips
Carrying Case – Nylon, water resistant softcase is provided in standard package

Physical
Instrument Dimensions – 7.5” x 4.0” x 2.25”
Instrument Weight (with batteries) – .75 lbs
Standard Carrying Case Dimensions – 16” x 6” x 14”
Standard Carrying Case Weight (loaded) – 6.5 lbs

Approvals
NHTSA (US DOT) EBT, Inquire for list of approved US states or certifications in countries outside of the USA. CE Mark.

Standard Package Includes
Compatible Printer
Keyboard
Docking Station
Printed Manual
100 Mouthpieces
Nylon Carrying Case

Instrument Options
AS VXLerator Data Management System
IntoxNet
Barometer Kit
BlueTooth Kit
Low Energy BlueTooth Kit
GPS Kit
Instrument Recharging Station
Instrument Docking Station
Mouthpiece Ejector Kit

Training
Intoximeters offers in person training and has a variety of training tools available to help a user cascade training to their own operators. Contact our training department for more information (see Training section of our website at www.intox.com/training).
