equinox evo with touch keyboard

Interacoustics Equinox Evo

This modular 2-channel clinical audiometer provides comprehensive audiometry testing for all ages. Combining the Equinox Evo with the Touch Keyboard offers the benefits of both a PC-based and traditional standalone audiometer.



Get a quote  Brochure

  • Effortless Data Handling, Sharing, & Updates
    Save time by securely consolidating reports in OtoAccess, Noah, or your EMR system via HL7. If your facility uses other Interacoustics solutions, OtoAccess easily integrates Equinox Evo into your workflow. This PC-based platform also allows for easy update deployment and upgrades.

    Build Your Solution
    The Equinox Evo offers comprehensive assessments, from basic audiometry with auto masking and masking helper to advanced tests like ACT™, QuickSIN, Weber, Stenger, Tone Decay and more.

  • Advanced Pediatric Features
    The Equinox Evo and Touch Keyboard combination offers a fully integrated VRA system, including two-way communication, automated VRA checklists, and reinforcer controls. Free Field+ (FF+) allows the connection of four speakers, offering the flexibility to switch between various free field setups. It features frequency-filtered sounds, Ling-6 sounds, pediatric noise, and ManU-IRU stimuli to keep children engaged.

    Comprehensive Testing Functionality
    Connect three calibrated air conduction transducers simultaneously: headphones, inserts, and high-frequency headsets. Includes bone conduction for forehead and mastoid placement, plus an assistant monitor headset.

equinox evo touchkeyboard

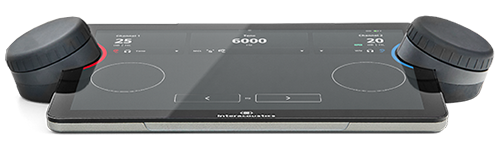

Interacoustics Touch Keyboard

Designed for use with the Interacoustics Equinox Evo and compatible with the Affinity Compact, the Touch Keyboard enhances audiometry testing with its ergonomic design and dedicated test screens. It simplifies workflows and can be used wirelessly for pediatric testing.

Learn More

interacoustics equinox evo video

Introducing Equinox Evo

Request a Quote

We understand that you have a choice when it comes to choosing your equipment and are dedicated to providing you with the highest quality instrumentation available.Contact us now for your free, no obligation quote and discover why we are the preferred Authorized Distributor and Service Provider to the world’s leading manufacturers.  (Completing our online form does not sign you up for electronic advertising.)

Request Quote

Specifications

  • Channels: 2
  • Dimension (WxDxH): 10.4 x 10.4 x 2.4 Inches
  • Weight: 3.97 lbs.
  • Frequencies: 125-8000 Hz (20 000 Hz Option)
  • Intensity: -10 to 120 dB
  • Output: Air, Bone, and Speech
  • Stimulus: Pure, Pulse, Warble, PED
  • Masking: NB, WN, SN, TEN



  • Bone Placement Support: Mastoid, forehead
  • Internal Storage: PC-based
  • Display: PC Monitor
  • Data Interfaces: Noah, Otoaccess, ADI/ EMR
  • Audiometer Keyboard: option
  • Touch Keyboard: option
  • Built in mic: no
