e3 Diagnostics

With so many noise hazards in the workplace, frequent screening of employee hearing is of the utmost importance. That’s why e3 Diagnostics offers a wide variety of premier industrial audiometers.

Our industrial audiometers offer touchscreen function keys and user-friendly operation. Sound booths are also available in a variety of wall thicknesses, and testing equipment can assess a wide range of decibels. If you need to test multiple people, we have multi-station screening booths that can test up to 10 subjects simultaneously.

e3 Diagnostics' distributes industrial audiometers from reputable manufactures such as Tremetrics, Bensen, and Micro Audiometrics. Browse our selection of products to learn more today!

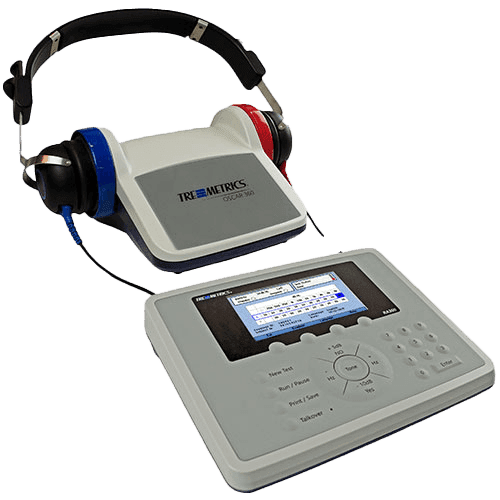

Tremetrics RA360

Tremetrics RA360

The RA360 was designed to allow anyone to perform a fully compliant OSHA hearing screening quickly and easily. Developed around the day-to-day use of the person performing the tests, the workflow is designed to save both time and money. Following in the footsteps of the popular RA660, Tremetrics RA360 completes the new line and generation of Occupational Audiometers for Hearing Conservation. Tremetrics RA360 features an optional real-time type 2 ambient noise monitor to ensure compliance outside of a sound booth. Boasting a large easy-to-read display, responsive sealed control panel, and clever compact packaging; the RA360 can be cleaned easily, and transported within a laptop bag. The 500 audiogram storage, fast thermal printer, and ability to connect to a PC make this hybrid audiometer extremely flexible. When used with the Oscar 360, the daily biological will be performed in less than 30 seconds with an accuracy far greater than that of a standard daily biological.

  • Simple, intuitive operation
  • Built-in test instruction and instruction upon error in multiple languages
  • Internal storage of 500 audiograms
  • Optional USB plug-and-play mini printer prints quietly and quickly
  • Optional room monitor allows for testing outside of a sound booth
  • Optional Oscar 360 allows for daily biological pass/fail alerts as well as daily check in less than 30 seconds



Datasheet

Request a Quote

We understand that you have a choice when it comes to choosing your equipment and are dedicated to providing you with the highest quality instrumentation available.Contact us now for your free, no obligation quote and discover why we are the preferred Authorized Distributor and Service Provider to the world’s leading manufacturers.  (Completing our online form does not sign you up for electronic advertising.)

Request Quote



Technical Specifications

System Features

• Fully automatic and manual test mode
• Sealed, single-membrane keypad for infection control
• Built-in talk over function
• USB PC interface
• Automatic pretest instructions
• 500 audiogram storage
• Multiple programmable examiners



Optional Features

• Oscar 360 acoustic simulator
• Room monitor

Printer Requirements

Windows compatible, laser or ink jet recommended

Technical Specifications (continued)

Computer Requirements

Windows 7 or 10 PC required to run RA360 Software.

Audiometer Technical Specifications

• Equals or exceeds ANSI S3.6-1969-2010
• Test frequencies: 250, 500, 1000, 1500, 2000, 3000, 4000, 6000, 8000 Hz (selectable)
• Frequency accuracy: Better than 1%, crystal controlled
• Distortion: Total harmonic distortion below -40 dB (1%)
• HL attenuator: -10 to 100 dB in 5 dB steps
• HL accuracy: ±1 dB
• Rise/Fall time: Meets ANSI specifications
• Choice of earphone options: TDH-39 or DD445.
• Dimensions: 9.75” W x 9” D x 2” H
• Weight: 2 lbs.
• Power supplied by interface module
