portable vision screening machine

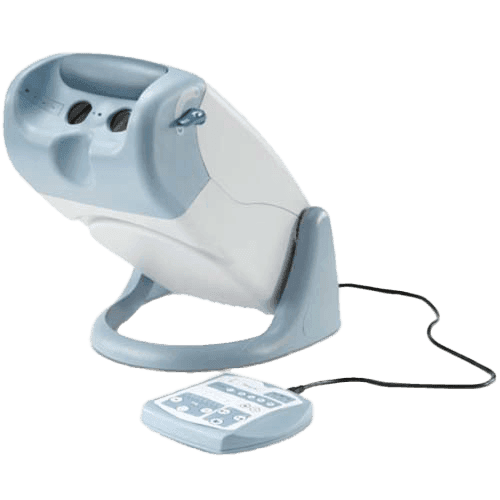

Titmus Vision Tester V4

The Titmus V4 Vision Screener is a high-quality, user-friendly device designed for quick and accurate vision tests. Built for reliability and ease of use, it provides clear results while making testing simple for both users and patients.

Perfect for occupational health, schools, and clinics, the Titmus V4 can test various aspects of vision, including sharpness, depth perception, color vision, and peripheral vision. Its lightweight, portable design and easy-to-operate controls make it convenient to use in any setting.

Titmus V2 also available.

Get a quote

Request a Quote

We understand that you have a choice when it comes to choosing your equipment and are dedicated to providing you with the highest quality instrumentation available.Contact us now for your free, no obligation quote and discover why we are the preferred Authorized Distributor and Service Provider to the world’s leading manufacturers.  (Completing our online form does not sign you up for electronic advertising.)

Request Quote


Standard Accessories

  • 8 Test slides made from high grade photographic film sealed between optical-quality glass.
  • Training manual.
  • Record forms - pad of 100 forms to record test results.
  • 10 Lens cleaning wipes
  • Package of 3 fog eliminator cloths.
  • Dust cover for instrument storage


Standards

Meets the following CE, UL, and CSA Standards.
Europe: EN 60601-1, IEC 60601-1, 3rd ed, Class I, Annex IX of MD D 93/42/EEC
USA: AAMI ES 60601-1
Canada: CSA-C22.2, No. 601.1-M90, Class I Device, CB Scheme: IEC 60601-1

Features

  • Compact and Portable. Optional carrying case with wheels available.
  • Ergonomics: Unique design that accommodates both adults and children, either standing or seated. Ensures patient is in a comfortable position for testing.
  • Testing: Tests at 20 feet (6m) for FAR and 14 inches (35cm) for NEAR vision. A variety of tests are available to screen for visual acuity, muscle balance (horizontal and vertical phoria), depth perception, color perception, and binocular vision. Total of 16 tests per vision screener (based on slide set selected).
  • Fluorescent Light Source: Improves slide illumination, replicates actual daylight conditions and provides true color testing. Light will give years of extended service (10,000 hours).
  • Membrane Control Panel: Instrument controls Located at your fingertips for ease of operation. Ease of placement — helps where space is limited. Indicators on panel for far/near, patient head position, eye occlusion, test slide position. Membrane Panel indicates when to replace light.
  • Foam Headrest: Soft headrest to ensure correct head position. Easy to clean.
  • Head Sensor: Electronic check to ensure correct head position. Patient cannot see tests, if head is incorrectly positioned.
  • Peripheral Vision Testing: Can perform peripheral vision testing in the horizontal visual field at 85°, 70°, 55° and nasal 45° for each eye.
  • Night Vision Testing: Can screen vision at night driving conditions.
  • Intermediate or Plus Lenses (Optional). Five additional lenses are available to identify vision problems at actual working distance (intermediate vision) of 19, 22, 26, 32 and 40 inches (50, 57, 67, 80 and 100 cm). Plus lenses with values of +1.00, +1.50, +1.75 and +2.25 are also available for testing children’s vision.

  • The Titmus vision test is a screening that evaluates key aspects of visual function, including visual acuity (near and far), depth perception, color vision, muscle balance, binocular vision, and peripheral vision.

  • The Titmus V4 is an automatic vision screener with a remote-control panel and night vision testing, while the Titmus V2 is manual with a thumb wheel. The V2 offers essential tests like visual acuity, depth perception, and color vision. The V4 is a more advanced model with improved ergonomics, up to 16 tests, fluorescent lighting for accurate color testing, and optional lenses for intermediate and night vision.
